N1 Cartridge (High Sensitivity Cartridge)

N1 Cartridge (High Sensitivity Cartridge)

N1 High Sensitivity Cartridge is ideal for low concentration DNA analysis. It has a detection limit of 5 pg/μl or 1 pg/μl if sample is dissolved in ddH2O or in special condition. The analysis size range is up to 5,000bp for cell-free DNA and other low concentration fragments analyses. The whole process takes about 3 minutes to finish.

N1 High Sensitivity Cartridge Kit

  • The sample concentration for analysis has a detection limit of about 5 pg/μl (or 1 pg/μl if dissolved in ddH2O) and the analysis time is about 3 minutes.

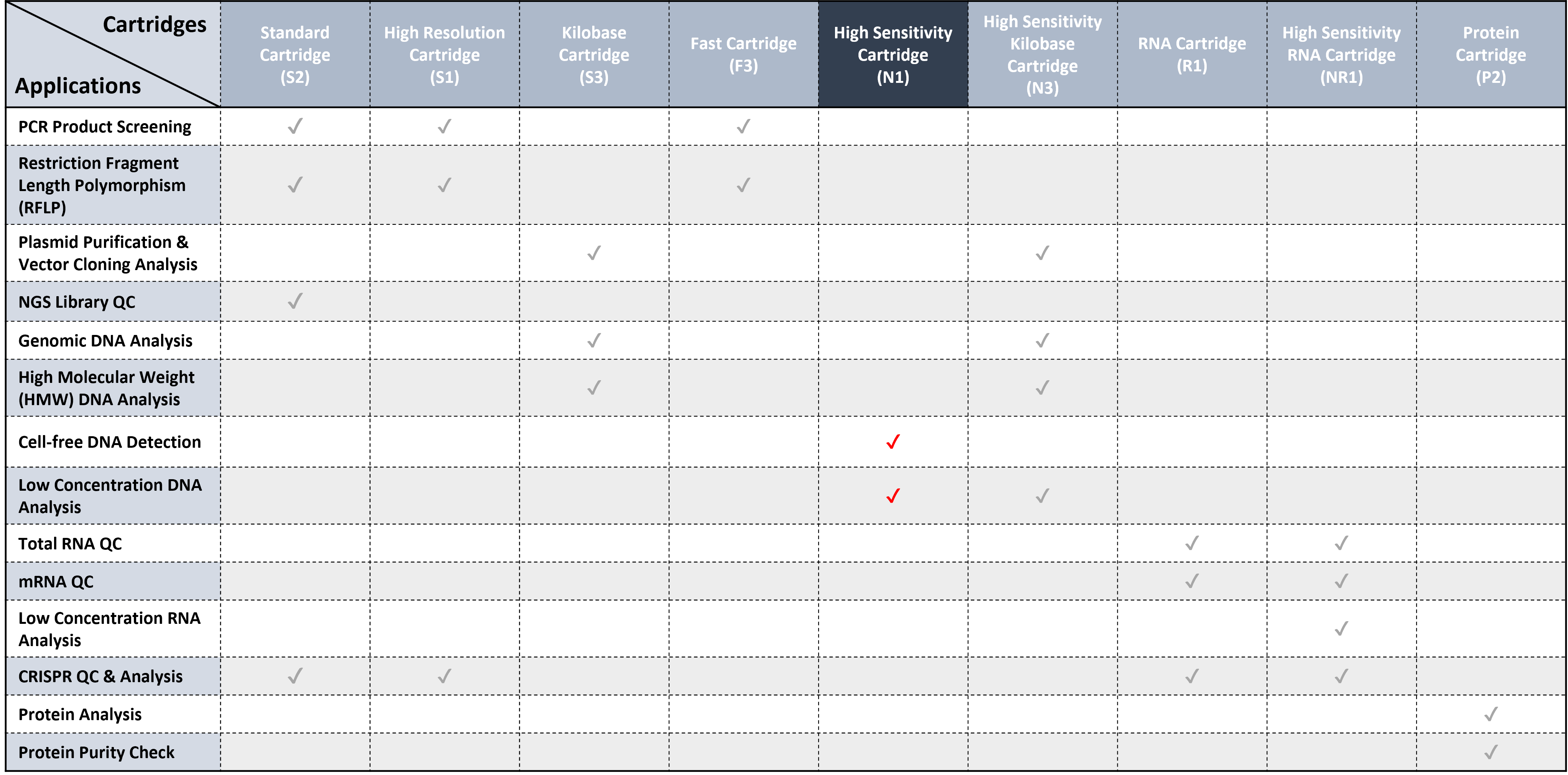

  • It can be used for analysis of low concentration DNA fragment and quality control of cell-free DNA.
  • It has a recommended analysis range up to around 5,000bp for DNA.
  • Each cartridge can analyze 100 runs for single-channel cartridge or 400 runs for 4-channel cartridge.
  • The cartridge can be stored at 4~27°C and is valid for 4 months.

DNA Qualitative Cartridge Kit

Cartridge Name

High Sensitivity Cartridge (N1)

Analytic Time (per run)


1 sample / 2-3mins


4 samples / 2-3mins

Cat. No.



Sample Number

(per cartridge)


100 runs




400 runs

Size Range

10~5,000 bp

Sample Consumption

(per run)

< 0.1 µL


5 pg/µLa
2 pg/µL in water*

Recommended Sample Volume

0.1 mL tube: 10 µL
0.2 mL tube: 20 µL
Micro Vial: 2 µL

Best Resolution

4~10 bp

Guaranteed Shelf Life

4 months

* Determined by the DNA ladder (15-622 bp size marker, C109200) as sample
∆ Micro Vial (Cat. No. C104250)


For the details of installation and operation of N1 Cartridge (High Sensitivity Cartridge),

please refer to the "Support & Download" (Click).
