F3 Cartridge (Fast Cartridge)

F3 Fast Cartridge can do a quick screening in 90 seconds on Qsep100 and Qsep400. With high voltage method and automatic result export, the analysis can be finished in a short period of time.

Inquiry

F3 Fast Cartridge Kit

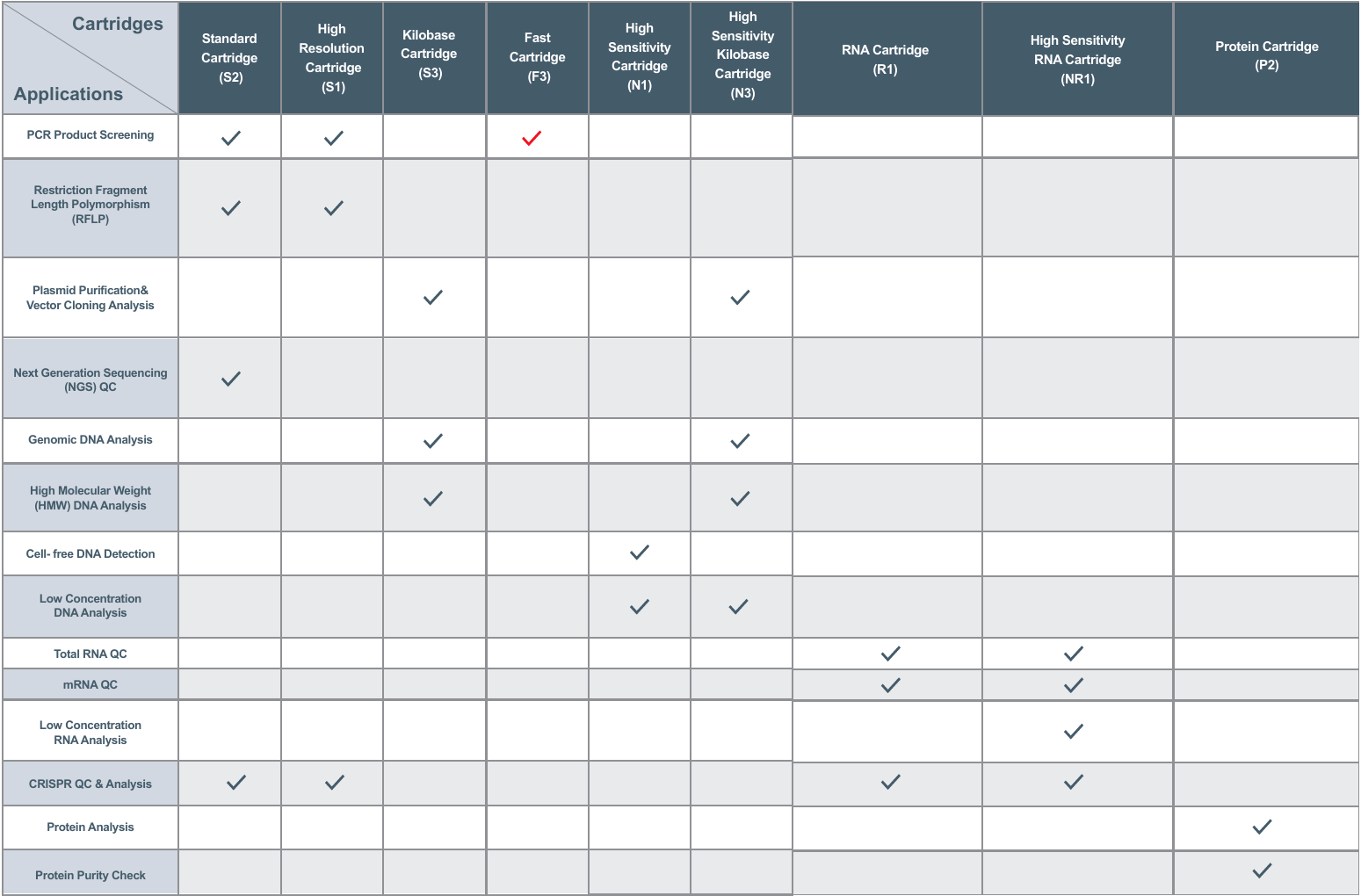

The analysis time is 90 seconds and can be applied to PCR product analysis.
It has a recommended analysis range up to around 5,000bp for DNA.
It runs on Qsep100 and Qsep400 only.
Each cartridge can analyze 300 runs for single-channel cartridge or 1200 runs for 4-channel cartridge.
The cartridge can be stored at 4~27°C and is valid for 4 months.

DNA Qualitative Cartridge Kit
Cartridge Name	Fast Cartridge (F3)		Analytic Time (per run)	1-Channel	1 sample / 1-2mins
				4-Channel	4 samples / 1-2mins
Cat. No.	1-Channel	C105103(1pc) C105203(2pcs) C105803(8pcs)	Sample Number (per cartridge)	1-Channel	200 runs
	4-Channel	C405103		4-Channel	800 runs
Size Range	20~5,000 bp		Sample Consumption (per run)	< 0.1 µL
L.O.D	0.1 ng/µL* 2 pg/µL in water*		Recommended Sample Volume	0.1 mL tube: 10 µL 0.2 mL tube: 20 µL Micro Vial: 2 µL^∆
Best Resolution	≥ 50 bp		Guaranteed Shelf Life	4 months
* Determined by the DNA ladder (15-622 bp size marker, C109200) as sample ∆ Micro Vial (Cat. No. C104250)

For the details of installation and operation of F3 Cartridge (Fast Cartridge),

please refer to the "Support & Download" (Click).
